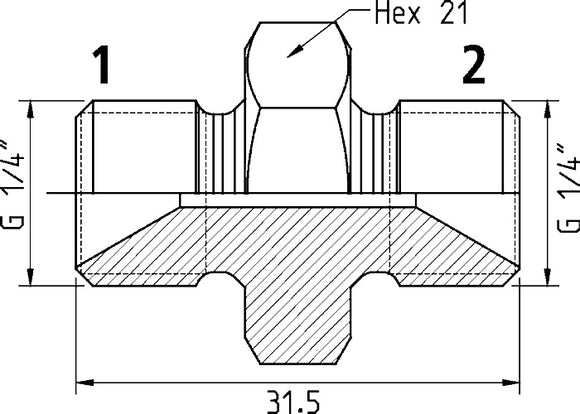

Cejn 19-950-1622 Adapter - 1/4" Male BSPP x 1/4" Male BSPP Price Per 5
Male thread Connection 1 with 60° internal cone Connection 2 with 60° internal cone (Max working pressure with rubber metal seal 100 MPa)
Connection 1 - G 1/4"
Connection 2 - G 1/4"
Max Working Pressure - 300.0 MPa
Adapters
CEJN provides an extensive range of high-pressure hydraulic adapters suitable for most couplings and hoses. All adapters are manufactured from black-zinc plated steel. Working pressure varies between 14,500 PSI (1000 bar) and 43,500 PSI (3000 bar), see product table for data on respective adapters.
Material - Black zinc-plated steel or stainless steel
