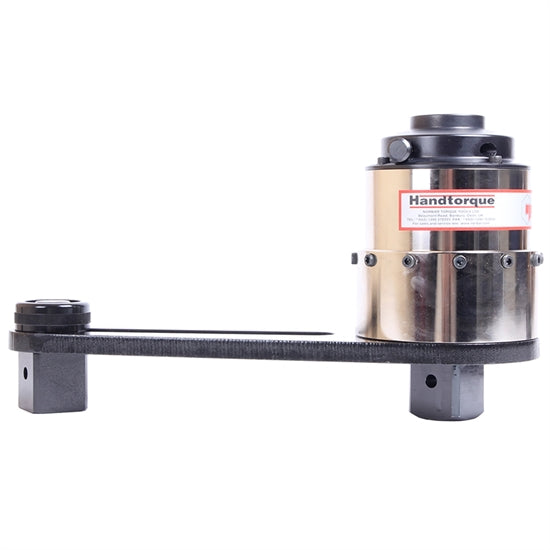

Norbar 16093 Ht6 125:1 3400N.M 1/2"

Norbar 16093 Ht6 125:1 3400N.M 1/2" Contact Us for Pricing

Norbar 'HandTorque' multipliers employ multiple stages of epicyclic gearing to give a wide range of torque outputs and ratios to suit most applications. Ratios quoted are always the torque multiplication ratio, not the velocity ratio as given for some competitor's products. For example, the velocity ratio may be 29.8:1 to give a torque multiplication of 25:1 ±4%.

Part number: 16093
EAN Bar Code: 5060207567718
NATO number: -
Accuracy: ±4%
Operates between: 250.00 - 2500.00 lbf·ft
340.00 - 3400.00 N·m
34.00 - 340.00 kgf·m

Tool Weight: 9 Kg
Multiplication Ratio: 135:1
Output Square: 1 1/2"
Input Square: 1/2"
Velocity Ratio: 162.284:1
Max Input Speed: 525 revs/min
Plate Weight: 2.5 Kg
Plate Torque: 19 N.m
