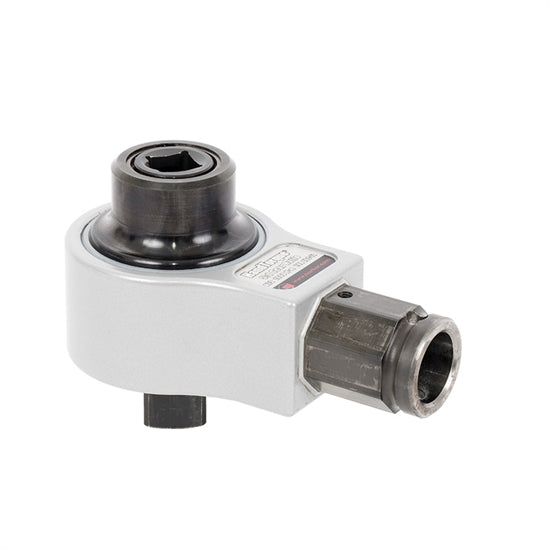

Norbar 180260 Ht3-1000 Multiplier
SKU NOR180260
Original price
$1,064.64
-
Original price
$1,064.64
Original price
$1,064.64
$1,064.64
-
$1,064.64
Current price
$1,064.64
Norbar 180260 Ht3-1000 Multiplier Contact Us for Pricing
The HandTorque® HT3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.
Part number: 180260
EAN Bar Code: 5060207565141
NATO number: -
Accuracy: ±4%
Operates between: 100.00 - 1000.00 N·m
74.00 - 738.00 lbf·ft
Tool Weight: 1.5 Kg
Output Square: 3/4"
Input Square: 1/2"
Reaction Plate Weight: 0.5 Kg cranked / 0.69 Kg straight
5:1 nominal torque multiplication reaction dependant. Ratio with cranked foot is 4.8:1; with straight reaction being 4.9:1
