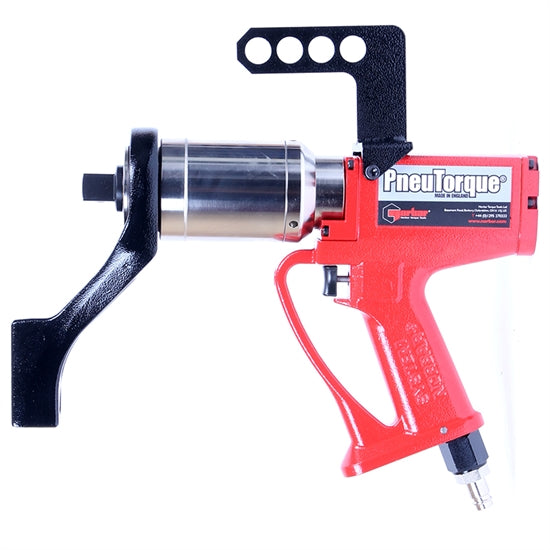

Norbar 18102.F06 PTM-72-1000-F, 1000 N.m, Forward, Stall, 3/4"

Norbar 18102.F06 Ptm-72-1000-F Fwd Only 3/4" Sq. Dr. Contact Us for Pricing

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

Part number: 18102.F06
EAN Bar Code: -
NATO number: -
Accuracy: ±5%
Operates between: 147.00 - 738.00 lbf·ft
200.00 - 1000.00 N·m

Square Size: 3/4"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec (40 CFM)
Tool Weight: 5.8 kg
Reaction Plate Weight: 0.7 kg
Free Speed: 122 rpm
