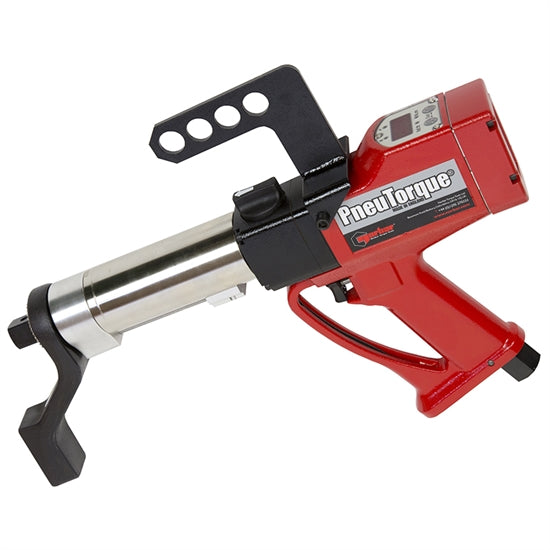

Norbar 18111.B06 PTM-52-800-B-IC, 800 N·m, Bi-Directional, Shut-Off Internal Control, 3/4"

Norbar 18111.B06 Ptm-52-800-B-Ic Int Shut Off 3/4" Sq Contact Us for Pricing

The PTM-52 is engineered to be one of the lightest and fastest tools of its type on the market. The exceptionally compact 52mm diameter gearbox means that the tool is well balanced, light weight and provides excellent access to bolts.

The integration of electronic torque measurement and control into the PTM-52 Series is achieved with the minimum impact on overall tool size and weight.

Shut-Off, Internal Control tools include a torque transducer, easy to read LED display, control panel and a solenoid valve to shut off the air supply once the desired torque has been reached.

Part number: 18111.B06
EAN Bar Code: 5060207568524
NATO number: -
Accuracy: ±2%
Operates between: 118.00 - 590.00 lbf·ft
160.00 - 800.00 N·m

Square Size: 3/4"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec
Tool Weight: 4.9 kg
Reaction Plate Weight: 0.85 kg
Free Speed: 148 rpm
