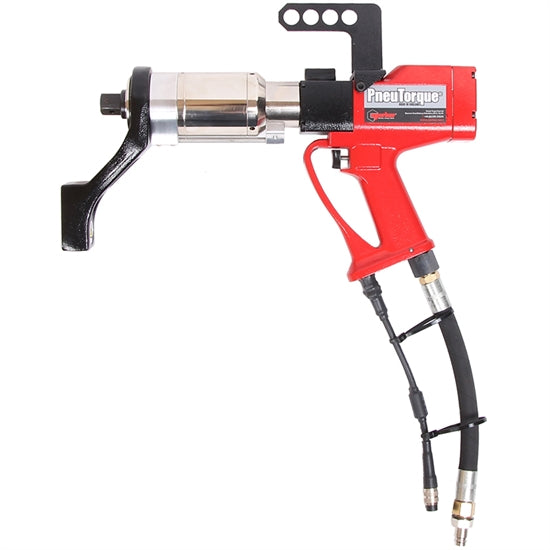

Norbar 18113.B08 PTM-72-1350-B-IC, 1350 N·m, Bi-Directional, Shut-Off Internal Control, 1"

Norbar 18113.B08 Ptm-72-1350-B-Ic Int Shut Off 1" Sq Dr Contact Us for Pricing

PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.

The integration of electronic torque measurement and control into the PTM-72 Series is achieved with the minimum impact of overall size and weight. The actual applied torque is accurately measured at the output of the tool meaning that a repeatability of ±2% can be guaranteed.

Shut-Off, Internal Control tools include a torque transducer, easy to read LED display, control panel and a solenoid valve to shut off the air supply once the desired torque has been reached.

Part number: 18113.B08
EAN Bar Code: 5060207568623
NATO number: -
Accuracy: ±2%
Operates between: 200.00 - 1000.00 lbf·ft
270.00 - 1350.00 N·m

Square Size: 1"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec
Tool Weight: 7.4 kg
Reaction Plate Weight: 0.7 kg
Free Speed: 86 rpm
