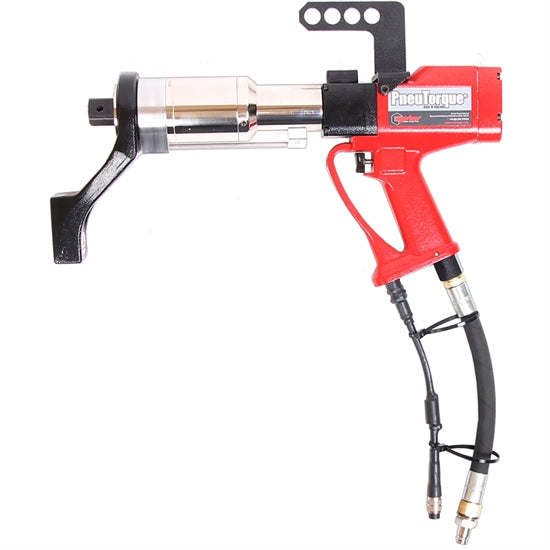

Norbar 18114.B08 Ptm-72-2000-B-Ic Int Shut Off 1" Sq Dr Contact Us for Pricing
PTM-72 tools use the same 'twin motor' handle as the PTM-52 but fitted with a durable 72mm gearbox to allow higher torque outputs. The 'twin motor' concept gives the benefit of high run-down speeds while adding very little to the size and weight of the tool.
The integration of electronic measurement and control into the PTM-72 Series is achieved with the minimum impact on overall tool size and weight. The actual applied torque is accurately measured at the output of the tool meaning that a repeatability of ±2% can be guaranteed.
Shut-Off, Internal Control tools include a torque transducer, easy to read LED display, control panel and a solenoid valve to shut off the air supply once the desired torque has been reached.
Part number: 18114.B08
EAN Bar Code: 5060207568630
NATO number: -
Accuracy: ±2%
Operates between: 295.00 - 1475.00 lbf·ft
400.00 - 2000.00 N·m
Square Size: 1"
Max Air Pressure: 6.3 bar
Air Consumption: 19 litres/sec
Tool Weight: 7.8 kg
Reaction Plate Weight: 0.7 kg
Free Speed: 58 rpm
