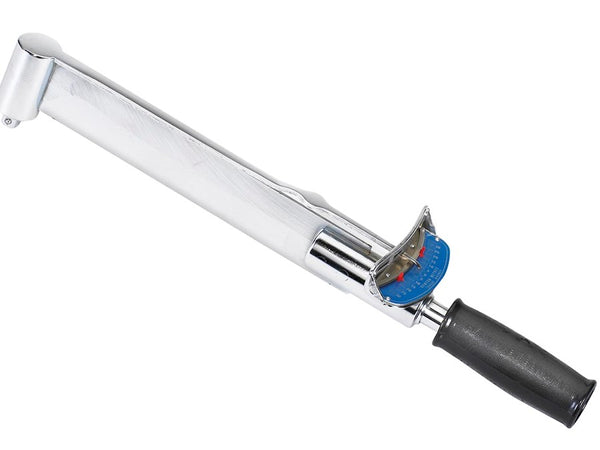

Sturtevant Richmont 850254 M 80 IO

Sturtevant Richmont 850254 M 80 IO

• Incredibly durable design - actual service life frequently measured in decades.
• Very low cost of ownership - exceptional accuracy retention permits extended calibration intervals, and they are virtually maintenance and repair free.
• Ideal for prevailing-torque and destructive testing applications.
• Low mass/low inertia design of pointers helps eliminate reading distortion.
• Memory feature consists of fingers which follow a track in the scale and remain in place to indicate maximum torque achieved.
• Peak torque indicated on scale is accurate, even on destructive testing applications.
• Pivoted handle concentrates load at precise point on lever to assure torque accuracy.
• Meets or exceeds ASME B107.300 and ISO 6789.
• Accuracy of all flat beams is +/- 2% of indicated value from 20% to 100% of accuracy, in both directions.

Model: M 80 IO

Torque Capacity: 0-80 in. oz.

Steps Of Graduations: 5 in. ozs.

Square Drive: 1/4''

Lever Arm Distance: 6.2''

Overall Weight (lbs.): 0.25 lbs.
