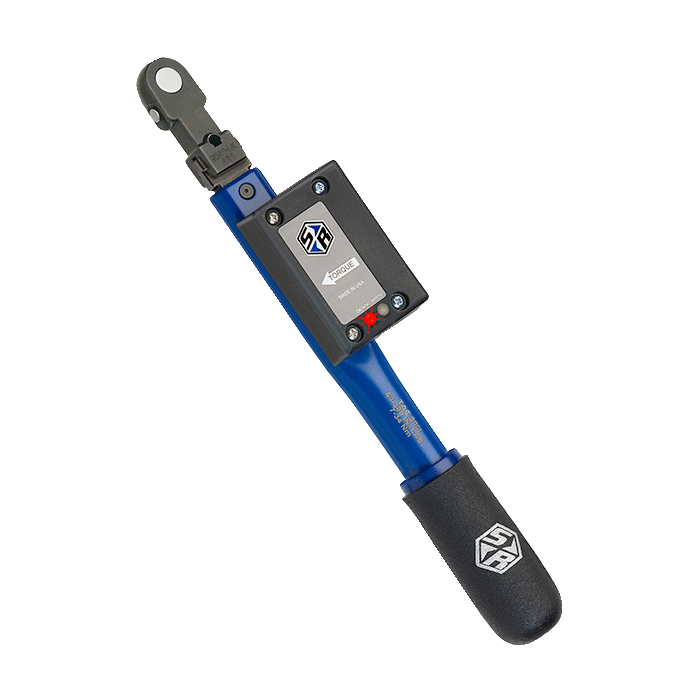

Sturtevant Richmont 810721 Tac 1800 I Ergo Digital Click Wrench

Sturtevant Richmont 810721 Tac 1800 I Ergo Digital Click Wrench

• Audible/tactile pulse when preset torque is achieved
• Keep up with the shortest of takt times
• Fully compatible with the Global 400, Global 400mp, and the TCV e2 torque controllers
• Works with the Patented Holding Tool when used with the Global 400 or Global 400mp
• Access to over 200 interchangeable heads that all fit on the end of the Pin and Spring Dovetail
• Heads "Lock On" to the Dovetail when the head is centered on the wrench
• Powered by one AAA NiMH rechargeable battery; Using any battery other than a AAA NiMH immediately voids the warranty
• Ships with two NiMH rechargeable batteries, charger sold separately
• Accuracy of +/- 4% of the indicated value between 20% and 100% of the rated torque capacity
• #Equipped with two LEDs: green/red for OK/NOK and blue that pulses when tool becomes active and ready for use
• Pulsing blue LED timing can be adjusted in the controller to help operators identify the active tool if there are multiple TAC wrenches in a work cell
• Requires a special tool to set torque value, this prevents inadvertent changes to the torque output
• Comes with ISO 17025 Calibration Certificate if we set the torque value at the factory
• Torque modes of operation include Click and Peak
• Click reads the torque value at which the wrench clicked
• Peak reads the highest applied torque value
• Operates in Torque and Angle Monitoring (TAM)
• Modes of operation are set in the controller and can be changed on a parameter-by-parameter basis
• Torque value must be changed by adjusting spring tension
