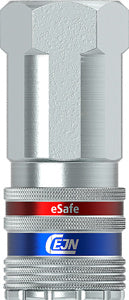

Cejn 10-430-2404 Safety eSafe Coupling - Industrial Interchange 3/8" Body Size - 3/8" Female NPT Price Per 5
Series 430 eSafe, DN 8.2
ISO 6150 BA-A 59439 standardSoft-line
Replacement for Cejn 10-430-1404
Female thread Coupling
Connection - NPT 3/8"
Connection type - Standard quick couplings
Nominal flow diameter - 8.2 mm (0.3")
Air flow - 2500 l/min (88.3 CFM)
Max working pressure - 16 bar (232 PSI)
Min. burst pressure - 140 bar (2030 PSI)
Connection force - 132 N
Min temperature -20°C +100°C (-4°F +212°F)
Material standard (std) - Steel/brass
Material coupling - Steel/brass (Zinc)
Nipple standard - ISO 6150 B, A-A 59439 8.2 mm
eSafe Series 430 offers a wide range of easy-to-grip couplings, including Stream-Line. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. The coupling have smaller outside dimension than comparable designs. The coupling is fully automatic to ensure quick and easy handling. eSafe series complies with ISO Standard 4414.
