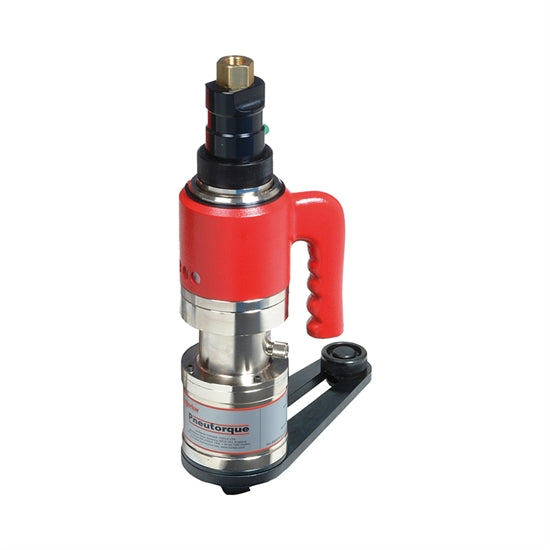

Norbar 16013.Mts Pt2; 1" Sq. Dr. Manual Two Speed Contact Us for Pricing
Based on the original PneuTorque, the 'Standard Series' range is a direct result of over 30 years of refinement and development necessary to keep pace with industry's requirements today. In use on many thousands of applications worldwide, PneuTorque Wrenches continue to represent the foundation of Norbar's powered tool range. The Manual Two Speed gearbox allows the PneuTorque operator to run down a nut at 5 times normal operating speed before manually changing gear to apply the specified torque. This can considerably reduce the cycle time for each joint.
Part number: 16013.MTS
EAN Bar Code: 5060922230836
NATO number: -
Accuracy: ±5%
Operates between: 380.00 - 1250.00 lbf·ft
515.00 - 1700.00 N·m
52.00 - 170.00 kgf·m
Square Size: 1"
Max Air Pressure: 4.2 bar
Free Run Low Speed: 9 revs/min
Free Run High Speed: 45 revs/min
Air Consumption: 19 litres/sec
Tool Weight: 14.6 Kg
Reaction-Plate Weight: 2.2 Kg
Reaction Plate Torque: 9 N.m
