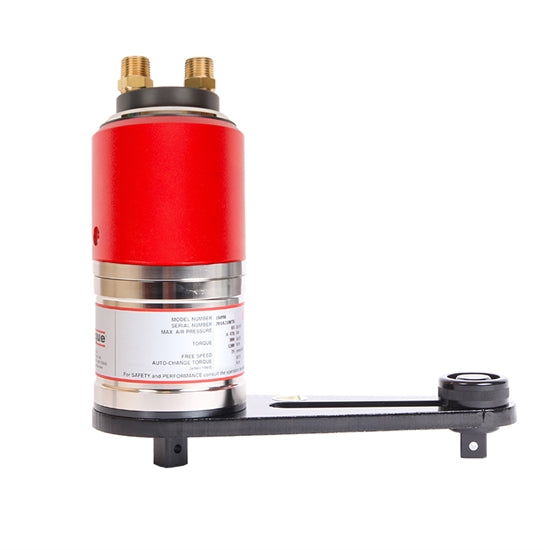

Norbar 16097.X Pt1A; 1" Sq Dr Remote Motor Contact Us for Pricing
'PneuTorque' pneumatic wrenches provide a smooth and continuous output drive which can be controlled by means of an air pressure regulator (Lubro Control Unit). Having set the air pressure from the supplied graph, the tool will stall out with a repeatability of ±5% on a given joint. Remote control versions have no direction/shut-off control on the tool but rely on external pneumatic circuitry to provide this function. This opens up numerous application possibilities for the PneuTorque ranging from simple stall shut-off in a hazardous working environment to sophisticated, multi-spindle torque and angle shut-off systems.
Part number: 16097.X
EAN Bar Code: -
NATO number: -
Accuracy: ±5%
Operates between: 200.00 - 900.00 lbf·ft
270.00 - 1200.00 N·m
27.00 - 125.00 kgf·m
Square Size: 1"
Max Air Pressure: 4.6 bar
Free Run Low Speed: 15 revs/min
Air Consumption: 19 litres/sec
Tool Weight: 11.1 Kg
Reaction-Plate Weight: 2.2 Kg
Reaction Plate Torque: 9 N.m
