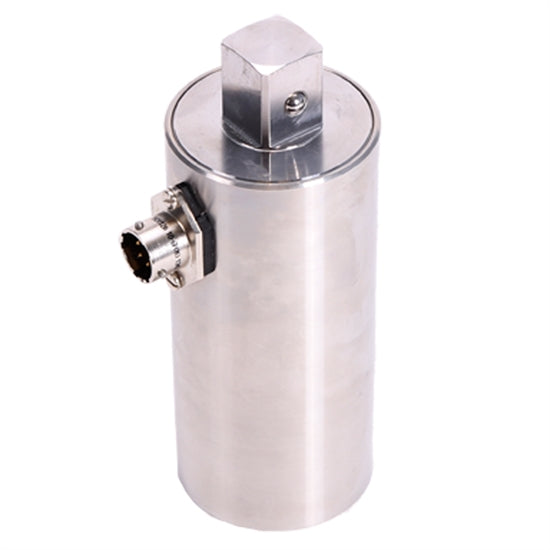

Norbar 50627.Log 500 Lbf.Ft Static Td 3/4" M/F Sq Dr Contact Us for Pricing
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world.
Weight: 1.5 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: 6 Way Mil Spec
Drive 1: 3/4" Male Square
Drive 2: 3/4" Female Square
