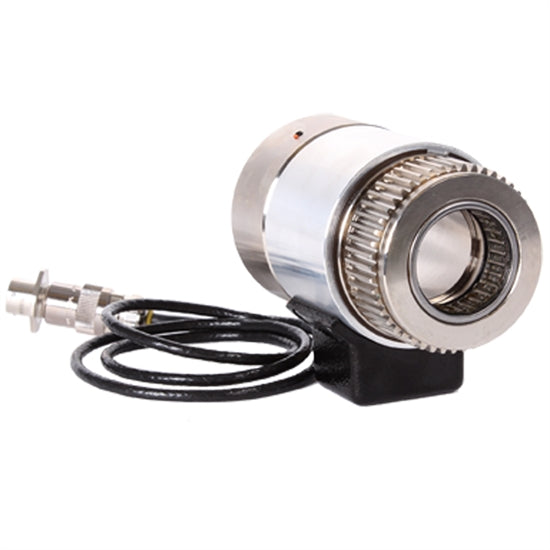

Norbar 50667.Ind 1500 N.M Annular Td For Remote Contact Us for Pricing
These Annular transducers are designed to fit directly to Norbar gearboxes in the '1500 Series' range (PneuTorque and HandTorque) and will accurately measure the torque output via a display instrument.
Weight: 1.5 Kg
Type: 72 diameter series
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Max Torsion Of Capacity: 110% of rated torque
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
