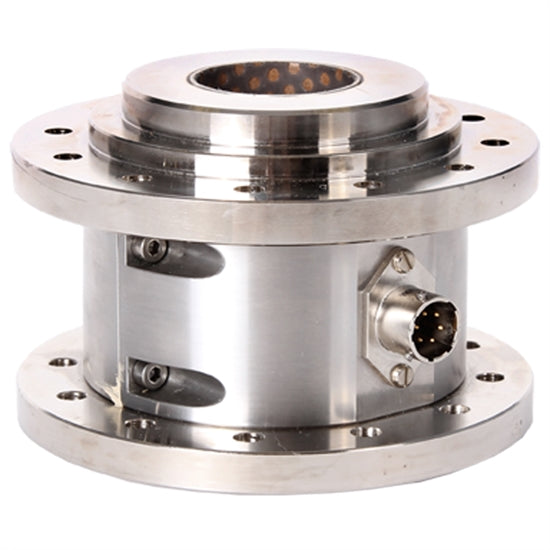

Norbar 50700.Log 3500 N.M Annular Td 1-1/2" Sq Dr Contact Us for Pricing
These Annular transducers are designed to fit directly to Norbar gearboxes in the 'Standard Series' (PneuTorque, EvoTorque and HandTorque) and will accurately measure the torque output via a display instrument.
This transducer is supplied with a No.6 carrier assembly.
Weight: 4.7 Kg
Type: Standard
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Max Torsion Of Capacity: 150% of rated torque
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
