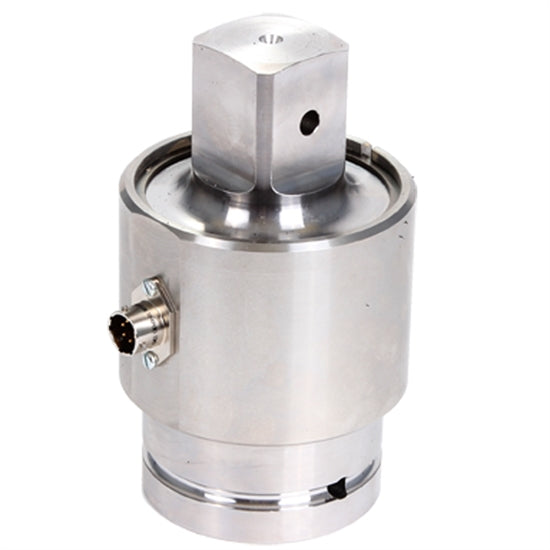

Norbar 50703.Log 2500 N.M Static Td 1-1/2" M/F Sq Dr

Norbar SKU: 50703.LOG

$4,924.29 USD

Shipping calculated at checkout

Norbar 50703.Log 2500 N.M Static Td 1-1/2" M/F Sq Dr Contact Us for Pricing

The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories thoughout the world.

Weight: 4.6 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: 6 Way Mil Spec
Drive 1: 1 1/2" Male Square
Drive 2: 1 1/2" Female Square
