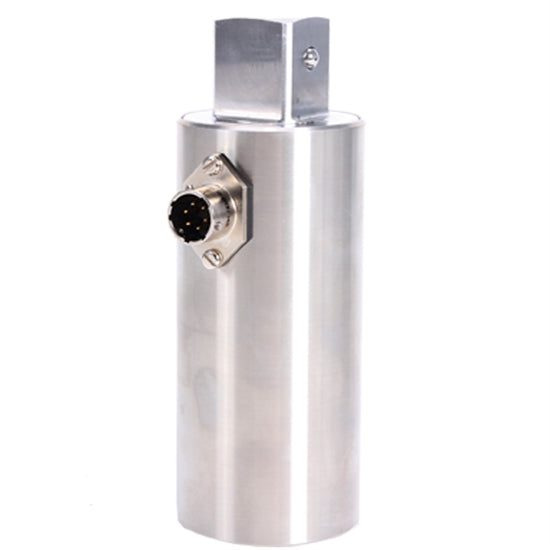

Norbar 50766.Log 1500 N.M Static Td 1" M/F Sq Dr Contact Us for Pricing
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world.
Part number: 50766.LOG
EAN Bar Code: 5060922231819
NATO number: -
Accuracy: ±0.5%
Operates between: 150.00 - 1500.00 N·m
Weight: 1.6 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/-0.03% /°C
Thermal Effect On Zero: < +/-0.01% /°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150 %
Connector: 6 Way Mil Spec
Drive 1: 1" Male Square
Drive 2: 1" Female Square
