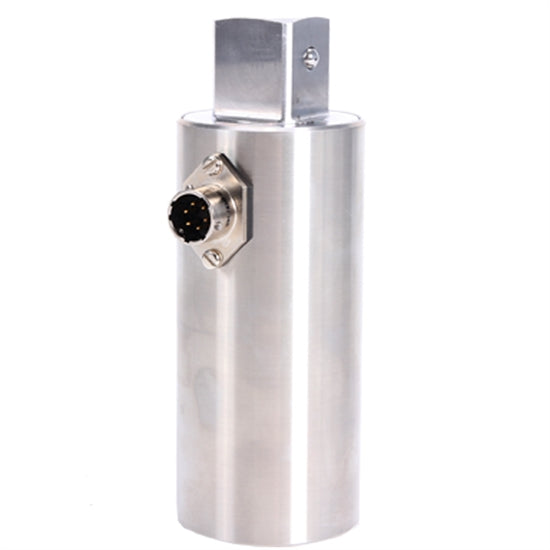

Norbar 50773.Log 1000 Lbf.Ft Static Td 1" M/F Sq Dr Contact Us for Pricing
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world.
Part number: 50773.LOG
EAN Bar Code: 5060922232014
NATO number: -
Accuracy: ±0.5%
Operates between: 100.00 - 1000.00 lbf·ft
Weight: 1.6 Kg
Temp Range Operating: -10ºC to +50ºC
Temp Range Storage: -20ºC to +70ºC
Thermal Effect On Span: < +/- 0.03% /ºC
Thermal Effect On Zero: < +/- 0.01% /ºC
Torsional Deflection: < 1º
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: 6 Way Mil Spec
Drive 1: 1" Male Square
Drive 2: 1" Female Square
