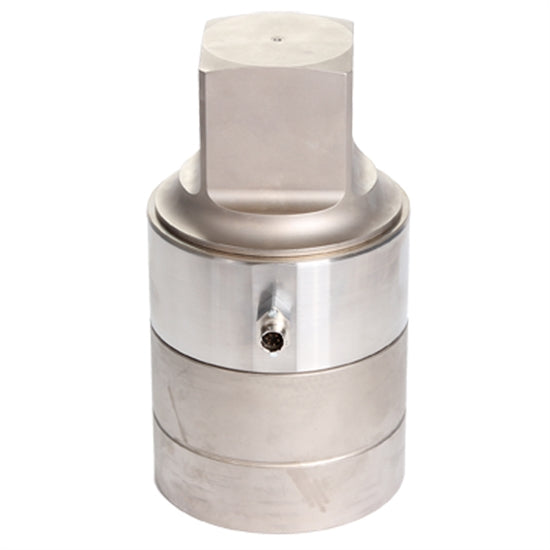

Norbar 50783.Log 80000 N.M Static Td 3-1/2" M/F Dr Contact Us for Pricing
The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories throughout the world.
Part number: 50783.LOG
EAN Bar Code: 5060922234797
NATO number: -
Accuracy: -
Operates between: 8000.00 - 80000.00 N·m
Weight: 30 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: 6 Way Mil Spec
Drive 1: 3 1/2" Male Square
Drive 2: 3 1/2" Male Square
