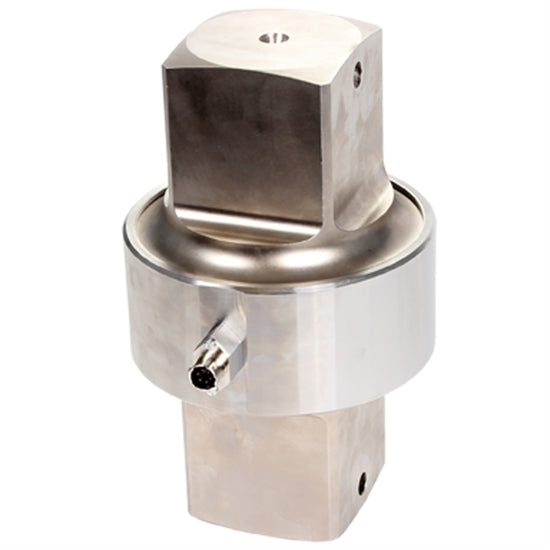

Norbar 50795.Log 50000 Lbf.Ft Static Td 3-1/2" M/M Sq Dr Contact Us for Pricing
The accuracy and quality of the Norbar Static Torque Transducers has made them the first choice of many calibration laboratories throughout the world.
Part number: 50795.LOG
EAN Bar Code: 5060922232571
NATO number: -
Accuracy: -
Operates between: 5000.00 - 50000.00 lbf·ft
Weight: 16.3 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/-0.03%/°C
Thermal Effect On Zero: < +/-0.01%/°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: 6 Way Mil Spec
Drive 1: 3 1/2" Male Square
Drive 2: 3 1/2" Male Square
