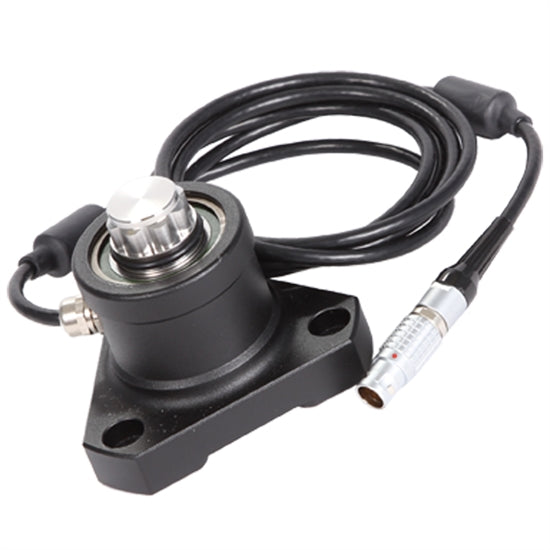

Norbar 50844.Log 60 N.M Static Flange Mount Trans Fmt 22Mm Bi Contact Us for Pricing
Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. The transducer lead is also included and is fitted with a high quality Lemo® connector.
Part number: 50844.LOG
EAN Bar Code: 5060922233011
NATO number: -
Accuracy: ±0.5%
Operates between: 3.00 - 60.00 N·m
Weight: 2.79 Kg
Temp Range Operating: -10°C to +50°C
Temp Range Storage: -20°C to +70°C
Thermal Effect On Span: < +/- 0.03%/°C
Thermal Effect On Zero: < +/- 0.01%/°C
Torsional Deflection: < 1°
Fatigue: > 10 exp 7 cycles
Maximum Torsion Capacity: 150%
Connector: Lemo®
Drive 1: 3/8"
Drive 2: 1/2"
