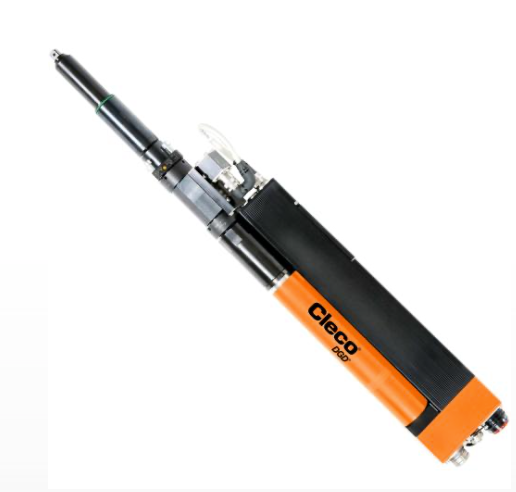

Cleco 947656A0 Built-In Nuts Contact Us For Pricing
Intelligent Spindle - BTSE Size 1-4 (2-2800 Nm) - Straight Drive - Single Torque Transducer
On board servo module, Patented daisy chain, Torque transducer, modular construction
Features
- Long Service Life, Maximum Precision, High Accuracy, World class free speed, On-Board trouble shooting
- Floating adapter not included with spindle
Torque Range Min (ft/lbs): 36.9
Torque Range Max (ft/lbs): 221
Free Speed (1/min): 453
Float (mm): 50
Drive type: 3/4" square drive
Min Center to Center (mm): 81
Weight (lbs): 31.1
Length (in): 23.2
