Cleco 947668A6 Built-In Nuts
SKU 947668A6
Save 10%
Original price
$24,360.00
Original price
$24,360.00
-
Original price
$24,360.00
Original price
$24,360.00
Current price
$21,924.00
$21,924.00
-
$21,924.00
Current price
$21,924.00

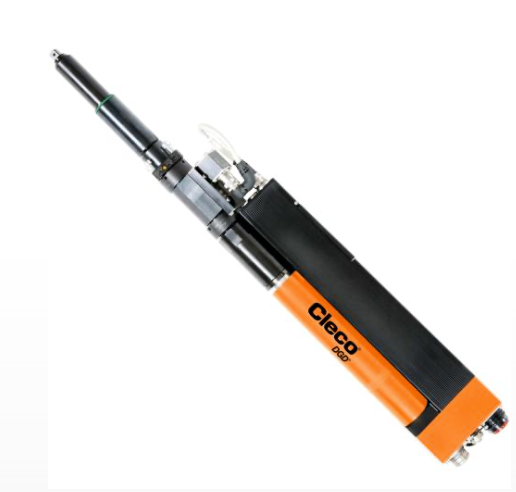

Cleco 947668A6 Built-In Nuts
- Contact Us For Availability
Intelligent Spindle - BTSE Size 1-4 (2-2800 Nm) - Straight Drive - Single Torque Transducer
On board servo module, Patented daisy chain, Torque transducer, modular construction
Features
- Long Service Life, Maximum Precision, High Accuracy, World class free speed, On-Board trouble shooting
- Floating adapter not included with spindle
Torque Range Min (ft/lbs): 95.9
Torque Range Max (ft/lbs): 487
Free Speed (1/min): 174
Float (mm): 50
Drive type: 1" square drive
Min Center to Center (mm): 91
Weight (lbs): 46.3
Length (in): 28.3
‚
