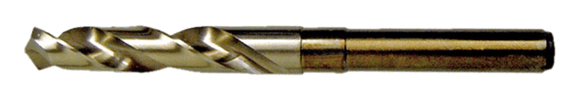

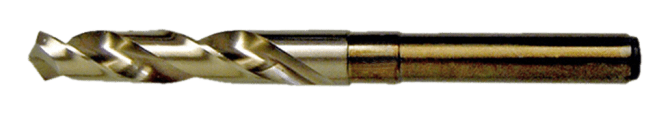

Chicago-Latrobe 53437 190C COBALT 37/64 Package of 1
General
- Brand Name Chicago-Latrobe
- Style #190C
- Item #53437
- Set No
Dimensions
- Tool Size 37/64"
- Diameter 0.5781"
- Diameter (Fraction) 37/64"
- Flute Length 3.1250"
- Flute Length (Metric) 79.38mm
- Overall Length 6.0000"
- Overall Length (Metric) 152.40mm
Specifications
- Surface Condition Straw
- Measurement System Imperial
- Material HSS-CO
- Flute Type Spiral
- Hand of Spiral Right
- Hand of Cut Right
- Drill Style Silver & Deming Drill
- Drill Construction General Purpose
- Drill Size System Fractional
- Point Style Split
- Point Angle 118°
- Number of Flutes 2
- Net Weight 143g
Shank
- Shank Configuration Reduced
- Shank Size 0.5000"
- Shank Size (Metric) 12.70mm
- Shank Length 2.2500"
- Shank Length (Metric) 57.15mm
- Shank Neck Diameter 0.5341"
- Shank Neck Length 0.5000"
