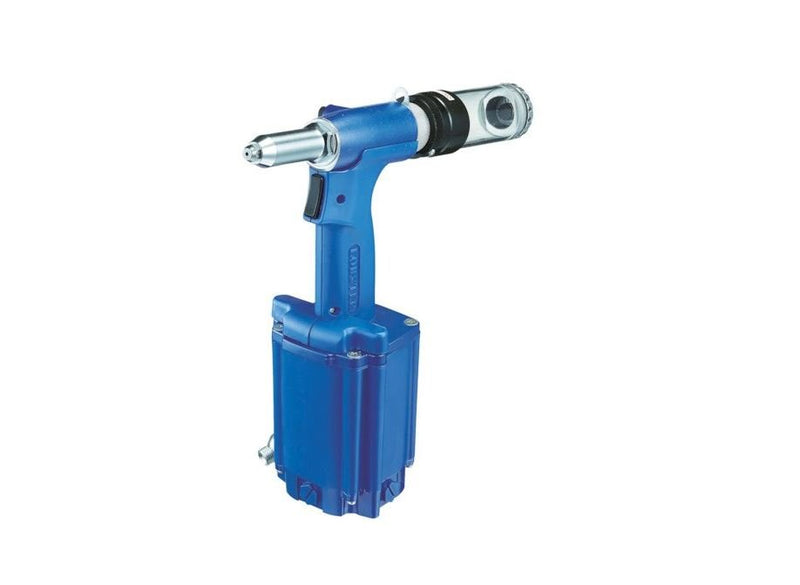

Lobster AR2000SV Pneumatic Rivet-With Vacuum
| Specification | Detail |
|---|---|
| Rivet Diameter Capacity | 3/32", 1/8", 5/32" ALL MATERIALS (2.4mm, 3.2mm, 4.0mm) |
| Dimensions | L284mm x H240mm x W95mm |
| Operating Air Pressure | 70 ~ 90 psi |
| Tool Stroke | .55” (14mm) |
| Traction Power | 950lbf (4.2kN) |
| Type of Power | Pneumatic / Hydraulic |
| Product Weight | 2.75lbs (1.25kg) |
| Manuals | AR-2000SV-INSTRUCTION-MANUAL.pdf |
A lightweight type using resin for the main body.
The rivet is sucked and held in the nose piece by the air pressure; the cut shaft is forcibly collected by using a tank unit etc. (type with suction discharge device）
Contact for Price Breaks
