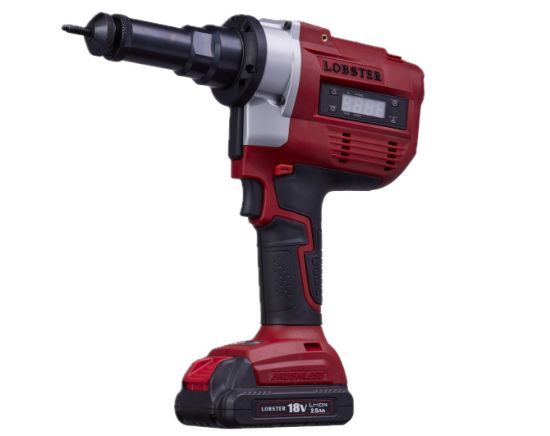

Battery Rivnut Gun
Automatic clutch screws rivet nuts on to the mandrel with a simple push
1000 or more rivet nuts can be fastened per full charge. When fastening LOBSTER rivet nuts with a fully-charged battery pack (BPL1825) mounted. The maximum fastening quantity varies depending on the type of rivet nut

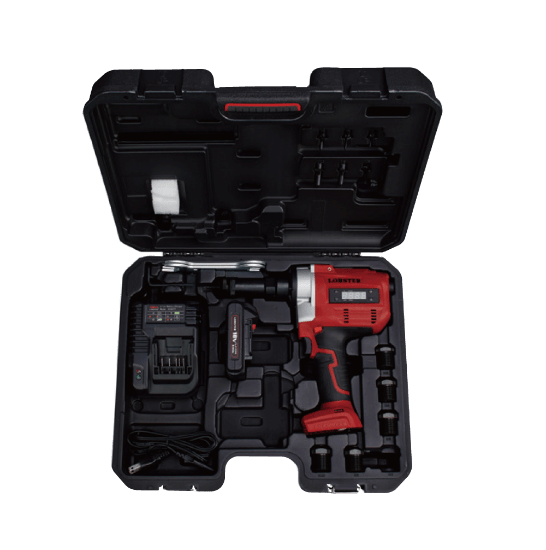

Comes with the parts and capability to set M4, M5, M6, M8, and M10 Rivet Nuts
Convenient reverse button for unscrewing rivet nuts
Save up to 10 preset stroke and pull force values through digital display on the tool
Collect data on how many rivet nuts have been set through optional poka-yoke system or integrated digital counter
Able to lock stroke and pull force values to eliminate operator error
| Specification | Detail |
|---|---|
| Product Weight | 5.5lbs. (2.5kg) |
| Rivet Nut Thread Capacity | Included: M4, M5, M6, M8, M10 |
| Tool Stroke | 0 - .40" (0 - 10mm) |
| Traction Power | 4500lbf (20kN) |
| Type of Power | Battery |
| Battery Capacity | 2.5Ah | 5.0Ah Optional |
| Battery Voltage | 18V |
| Manuals | N1B1-INSTRUCTION-MANUAL.pdf |
| Catalogs | N1B1_flyer.pdf |
