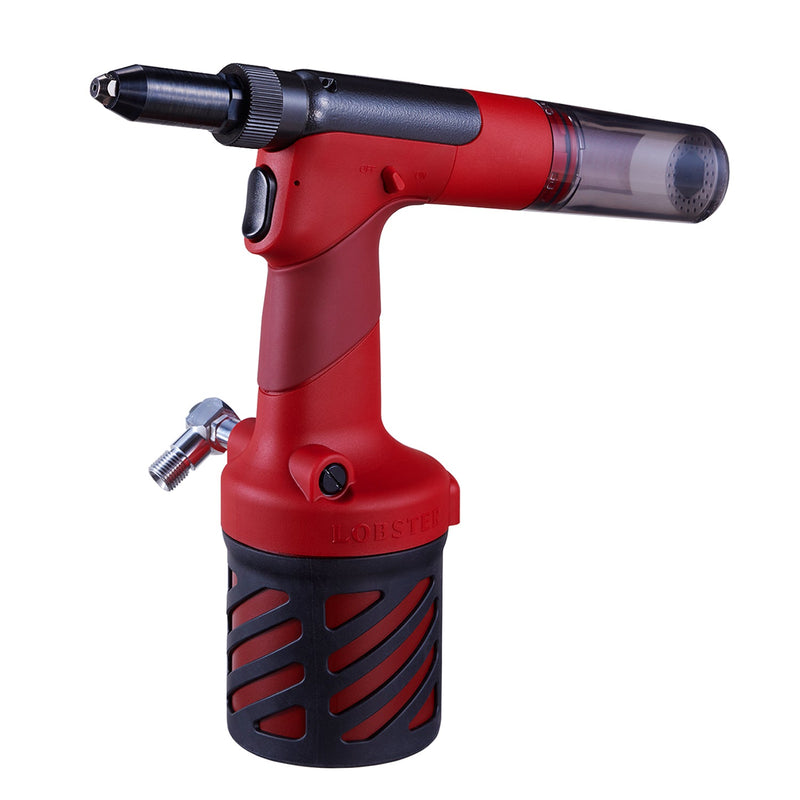

Lobster R2A1 Pneumatic Blind Rivet Installation Tool

Lobster R2A1 Pneumatic Riveter

User Range (mm): 2.4, 3.2, 4.0, 4.8 - (3/32, 1/8, 5/32, 3/16)

Stroke: 19mm (3/4)

Used Air Pressure MPa: 0.5 - 0.6 MPA

Tool Weight: 1.25kg (2.76 lbs)

Sound: Pressure Level (Lpa) 75dB

Air Consumption: Max 82 L/min (Suction at 0.6 MPa)

Includes: Nosepiece(2.4, 3.2, 4.0, 4.8), 69474 Guide Pipe (2.4, 3.2), 69473 Guide Pipe Collar (4.0, 4.8)

Excludes: 69478 Cylinder Cup Cover

A vastly improved hydraulic oil reservoir that, in testing, only resulted in a 0.2mm stroke reduction after 1,000,000 cycles of the tool.

Replaced Lobster R1A1

Tough, easy-to-use next-generation air riveter R2A1

・2-color molded ergonomic grip
・Interchangeable LR air supply ports
・Long 19 m stroke
・Protective cover on cylinder cup
・Mandrel kick-out preventing shutter

Parts Manual
