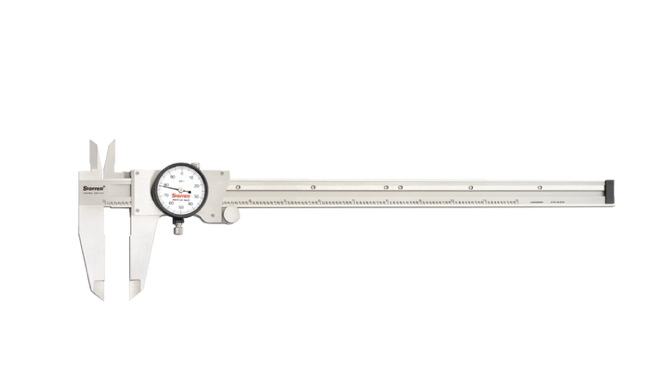

Starrett Dial Caliper, 0-12" White Face, EDP 56694 - 120-12 - Contact Us For Availability
Dial Slide Caliper, Stainless Steel, 0-12" Range, .001" Graduations
- Contact Us For Availability
The Starrett 120 Series Dial Calipers are the only American made dial calipers. These calipers are used by mechanics and toolmakers everywhere. Features include direct reading, ease-of-handling, reliability and accuracy making these one of the handiest measuring tools available. This model features white dial, 0-12" range, and .001" graduations, without Case. Depth Rod (PT26091) sold separately. - Contact Us For Availability
- Direct reading, reliable and accurate
- Sharp, clear dial graduations
- Sharp, black graduations on the satin finished bar
- Knife-edge contacts for both inside and outside measurements
- One hand use with the thumb-operated, fine adjustment roll
- Lock screw for dial bezel and Lock screw for holding sliding jaw in position
- Hardened stainless steel bar, measuring surfaces, rack and gears
- Positive, split-gear anti-backlash control
Specifications: - Contact Us For Availability
- Range (in): 0-12"
- Graduations (in): .001"
- Revolution Range (in): .100"
- Bar Graduations: .100"
- Construction Material: Stainless Steel
- Dial Color: White
- Inside Jaw Depth (in): 3/4"
- Inside Jaw Depth (mm): 19mm
- Outside Jaw Depth (in): 2-1/2"
- Outside Jaw Depth (mm): 63mm
- Accuracy (in): 0-6" (+/-.001") 6-12" (+/-.0015")
